Expanded Mesh

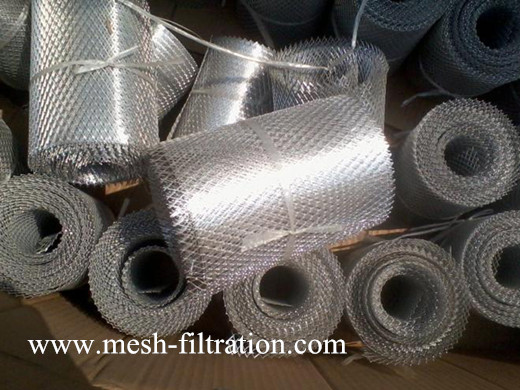

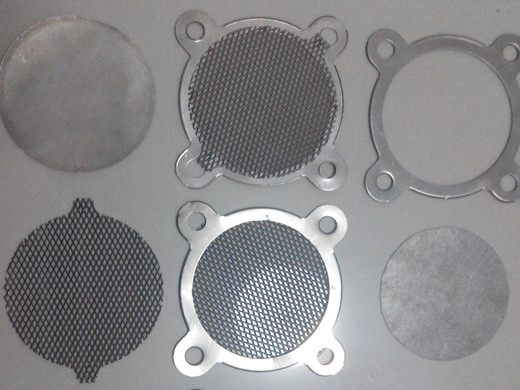

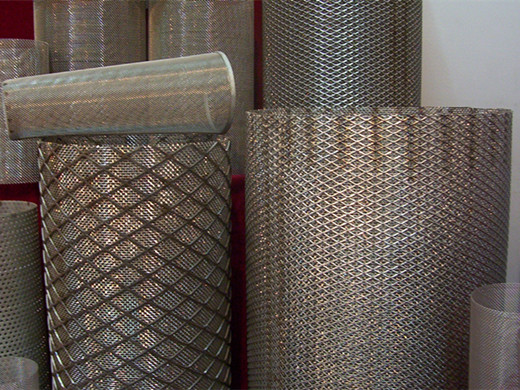

Micro Expanded Metal is a high precision expanded metal,the holes even smaller than the fine expanded metal,and the plate thickness much thinner.It is applicable to water pump,valve,sanitary ware,petroleum,chemical,pharmaceutical,environmental protection,electronics,crafts,mine screen,paper,mechanical,hydraulic,protection,filtration,marine,aviation,aerospace,daily necessities and other departments and high-tech research fields.

Micro Expanded Metals Specification
SWM LWM Strand Thick Strand Width Width Material Min Qty
0.50mm 0.70mm 0.05mm 0.10-0.15mm 70-100mm 304/316 10m2
0.60mm 0.80mm 0.08-0.10mm 0.15-0.20mm 100-200mm 304/316 10m2
0.70mm 1.00mm 0.10-0.15mm 0.15-0.20mm 100-200mm 304/316 10m2
0.70mm 1.25mm 0.10-0.20mm 0.15-0.25mm 100-250mm 304/316 10m2
0.90mm 1.50mm 0.10-0.30mm 0.20-.30mm 100-300mm 304/316 10m2
0.90mm 1.50mm 0.20-0.40mm 0.20-0.40mm 100-300mm Aluminium 10m2
1.00mm 2.00mm 0.15-0.40mm 0.15-0.5mm 150-300mm 304/316 10m2
1.40mm 2.00mm 0.15-0.50mm 0.15-0.50mm 150-500mm 304/316 10m2
1.50mm 2.50mm 0.20-0.50mm 0.20-0.50mm 150-500mm 304/316 10m2
2.00mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
2.20mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
2.40mm 3.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
2.40mm 3.50mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
2.40mm 4.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
3.00mm 5.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
3.00mm 6.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
4.00mm 6.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
4.00mm 8.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
5.00mm 10.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
7.00mm 12.50mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
8.00mm 16.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2
10.00mm 20.00mm 0.20-0.60mm 0.20-0.60mm 150-600mm 304/316 10m2

Material: SUS/AISI 304/316,304L,316L,Titanium,Nickel plates and so on.
Hope Shape: Triangle,Diamond,Hexagonal,Fish scale
Inquire the quality Micro Expanded Metals,Titanium Micro Expanded Metals,Nickel Micro Expanded Metals,please send e-mail
